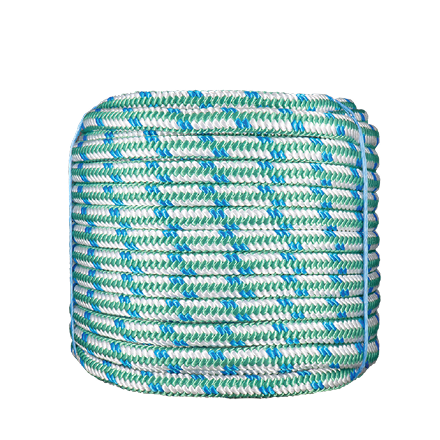

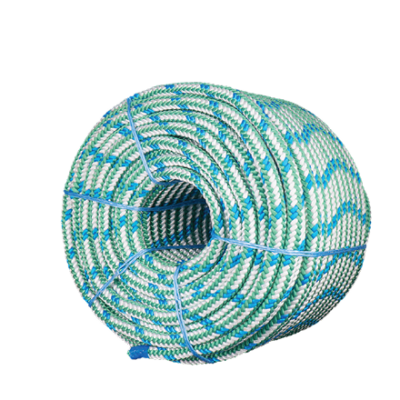

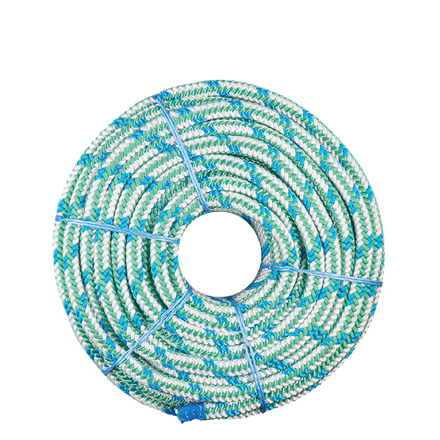

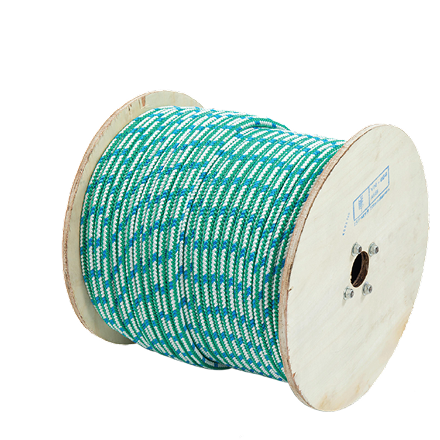

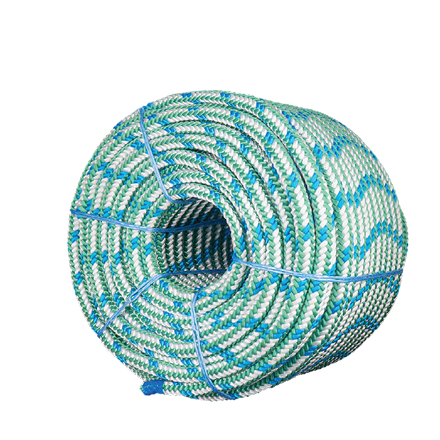

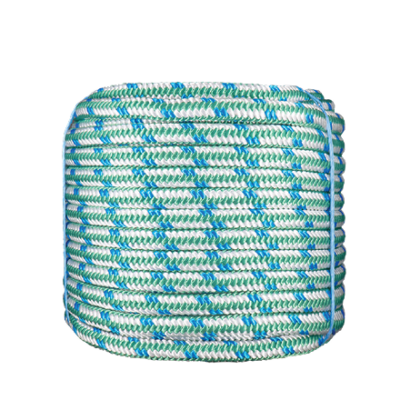

Double Braided Rope
This type features an inner braided core surrounded by an outer braided sheath. It offers high strength, flexibility, and durability, making it suitable for high-stress rescue operations.
High Tensile Strength
Load-Bearing Core
Protective Sheath
Mô tả
Đặc điểm nổi bật
Nội dung sản phẩm
Product Description
This type features an inner braided core surrounded by an outer braided sheath. It offers high strength, flexibility, and durability, making it suitable for high-stress rescue operations.
Features:
- In addition to the benefits of braided rope, the double-braided construction provide the following advantages, making it ideal choice of rope for extreme technical safety and rescue operation.
- High Tensile Strength: The inner and outer braided structure enhances the rope’s overall strength, allowing it to handle heavy loads. This is critical in rescue situations where the rope must support people, equipment, or both.
- Load-Bearing Core: The core typically bears most of the load, while the outer sheath provides additional strength and protection. This dual-load structure offers enhanced safety margins, especially in high-risk operations.
- Protective Sheath: The outer sheath layer is designed to withstand abrasion, making double-braided ropes suitable for rough environments where friction is a factor (e.g., rocky surfaces, sharp edges, or rugged urban settings).
US
Global
US Features
| Diameter (Inch) | Length (Ft) | Weight (Lbs) | Tensile Strength (Lbf) |
| 1/4 | 600 | 12 | 2200 |
| 5/16 | 600 | 17 | 3050 |
| 3/8 | 600 | 26 | 3960 |
| 7/16 | 600 | 37 | 4950 |
| 1/2 | 600 | 43 | 5507 |
| 9/16 | 600 | 60 | 6874 |
| 5/8 | 600 | 68 | 8921 |
| 3/4 | 600 | 97 | 11454 |
| 7/8 | 600 | 131 | 17731 |
| 1 | 600 | 172 | 18722 |
| 1-1/8 | 600 | 216 | 21200 |
Global Features
| Diameter (mm) | Length (M) | Weight (Kgs) | Tensile Strength (Kgf) |
| 6 | 183 | 5,2 | 999 |
| 8 | 183 | 7,5 | 1385 |
| 9,5 | 183 | 11,9 | 1798 |
| 11 | 183 | 16,6 | 2247 |
| 12,5 | 183 | 19,6 | 2500 |
| 14 | 183 | 27,2 | 3121 |
| 16 | 183 | 30,6 | 4050 |
| 19 | 183 | 43,8 | 5200 |
| 22 | 183 | 59,5 | 8050 |
| 25 | 183 | 78,1 | 8500 |
| 28 | 183 | 98,1 | 9625 |
